Pioneer 12" Sub & Amp MOSFET 1400 Watt Deal

Pioneer 12″ Sub & Amp MOSFET 1400 Watt Deal

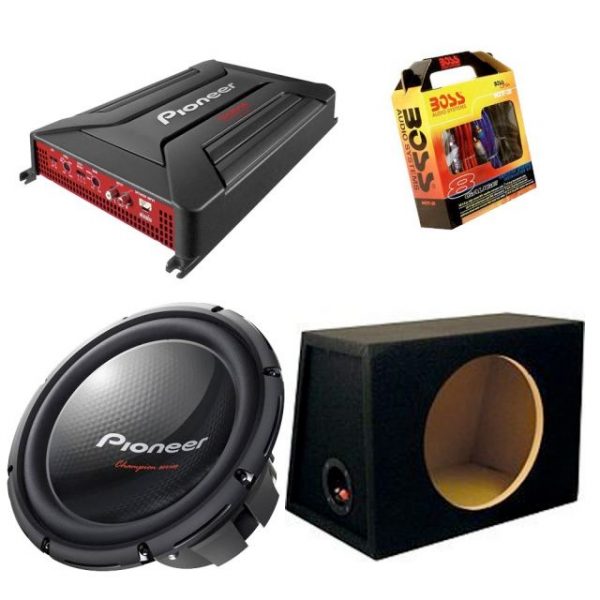

This package comprises:

1 x Pioneer 12″ TSW-310S4 12″ 1400W subwoofer
1x Pioneer GM-A5602 2 Channel Amplifer
1 x12″ sealed carpeted box
1 x 8-gauge amp wiring kit

TS-W310S4

Maximum input power 1.400 W
Nominal input power 400 W
Impedance 4Ω
Frequency response 20 – 250 Hz
Sensitivity (1W/1m) 95 dB
Woofer size 30,0 cm
Woofer material IMPP Composite Seamless Cone
Voice Coil type Single
Dual 4Ω voice coils: 2 or 8Ω ???
Pole Yoke Type Extended and Vented pole yoke
Terminals Push-type
Weight 6.20 kg
Surround Dual Layer, Fiber Reinforced Elastic Polymer Surround

GM-A5602

Maximum Output Power 900W (Bridged) or 2 x 300W (4 Ω) or 2 x 450 W (2 Ω)
CEA 2006 Power (THD + N = 1%) 2 x 150W (4 Ω)
Continuous power output (RMS) 2 x 150W (4 Ω) or 1 x 450W (4Ω bridged) or 2 x 225 W (2 Ω)
Load impedance capability 2-8 ohm allowable (stereo)
Frequency response 10Hz ~ 70kHz (+0dB , -3dB) Hz
Distortion < 0.05 % S/N ratio > 96 dB
Bass Boost 50Hz; 0/6/12dB
LPF 40-500 Hz (-12 dB/oct)
RCA terminals ??? (input)
Speaker Terminals Screw-type
High Voltage Input (+) 300 mV – 6.5 V
Speaker Input Level 0,8 – 15 V
Max. current consumption (A/4Ω) 36A
Chassis size (W x H x D) 348(W) X 60(H) X 215(D) mm
Unit weight 2.3 kg
