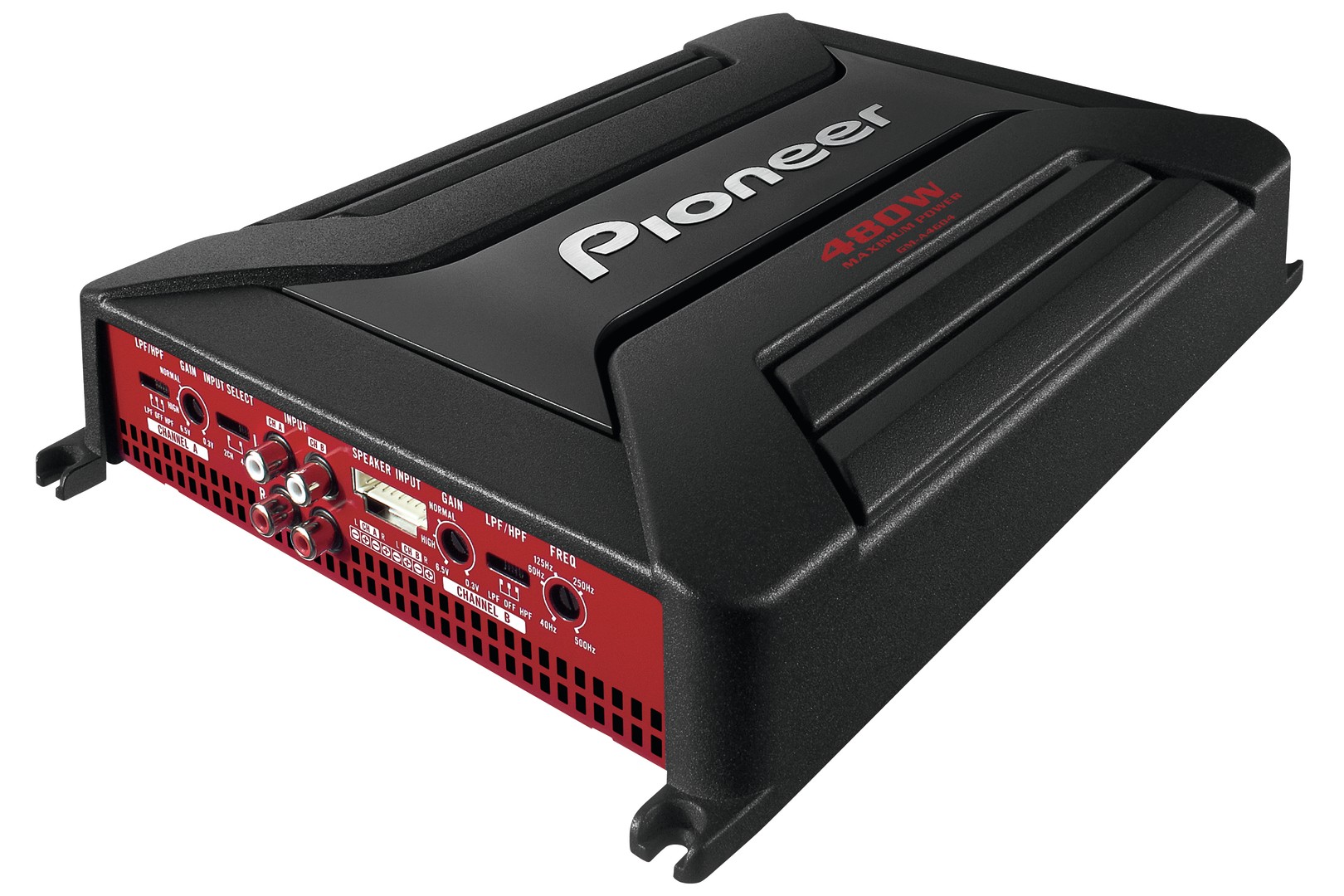

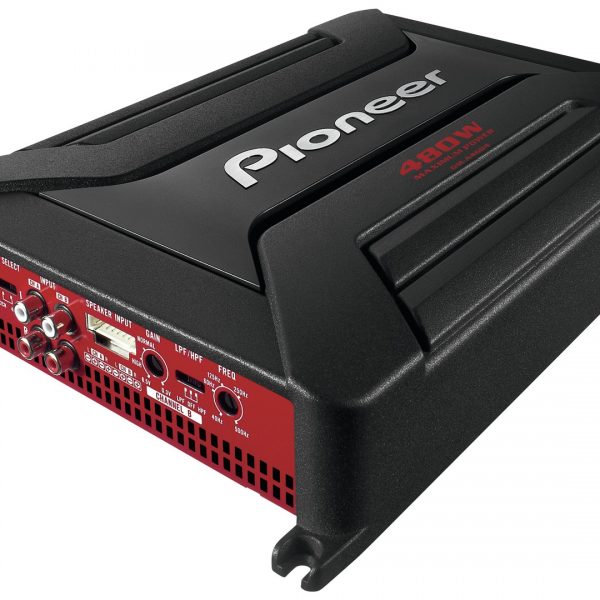

Pioneer GM-A4604 – 4-Channel Bridgeable Amplifier (480W)

”
Maximum Output Power 480W (Bridged) or 4 x 80W (4 Ω) or 4 x 120 W (2 Ω)
CEA 2006 Power (THD + N = 1%) 2 x 120W (4 Ω)
Continuous power output (RMS) 4 x 40W (4 Ω) or 4 x 60W (2Ω) or 1 x 120 W (4Ω bridged)
Load impedance capability 2-8 ohm allowable (stereo)
Frequency response 10Hz ~ 70kHz (+0dB , -3dB) Hz
Distortion < 0.05 % S/N ratio > 94 dB
LPF 80Hz (-12 dB/oct)
RCA terminals (input)
Speaker Terminals Screw-type
High Voltage Input (+) 300 mV – 6.5 V
Speaker Input Level 3 – 26 V
Max. current consumption (A/4Ω) 20.5A
Chassis size (W x H x D) 318(W) X 60(H) X 215(D) mm
Unit weight 2.1 kg
“
