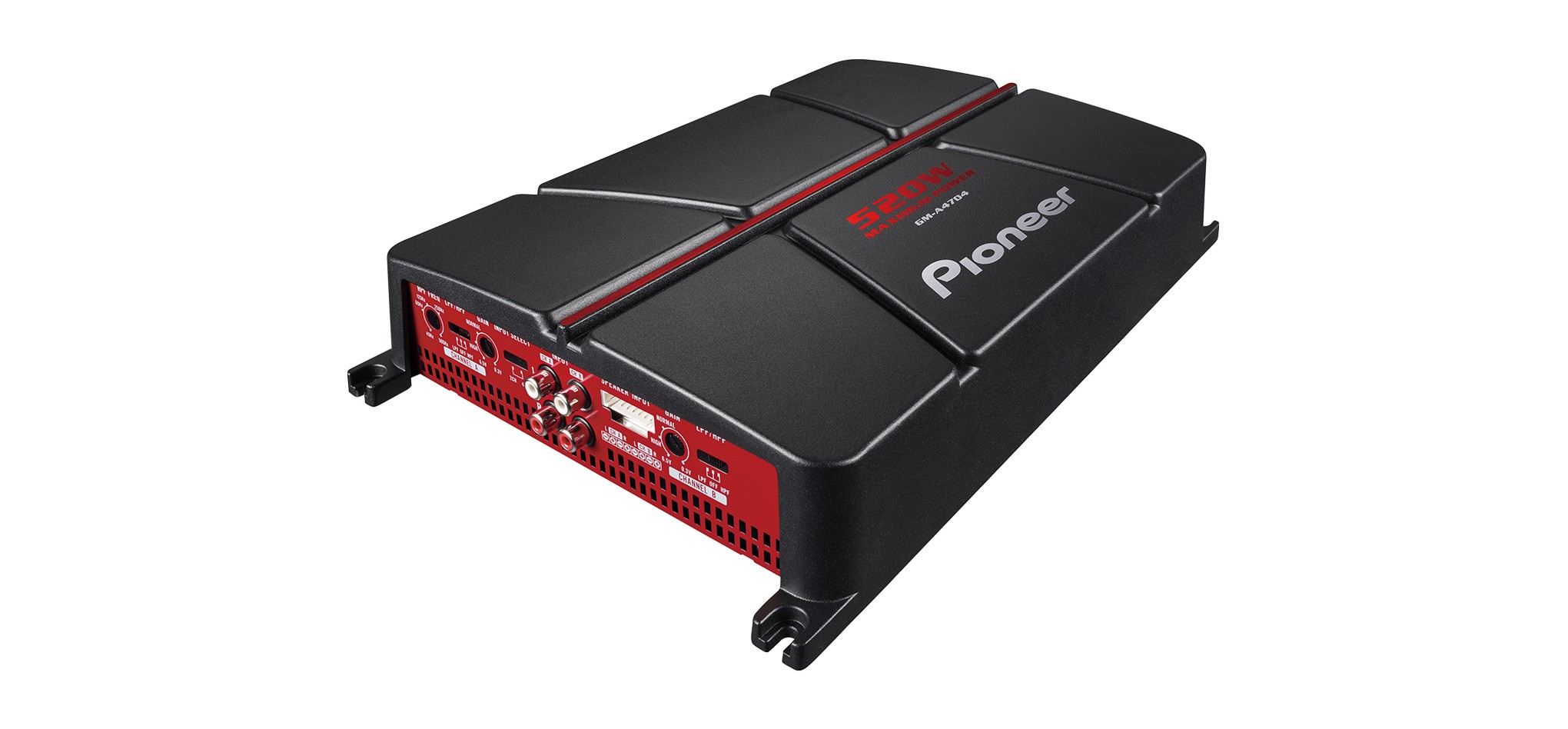

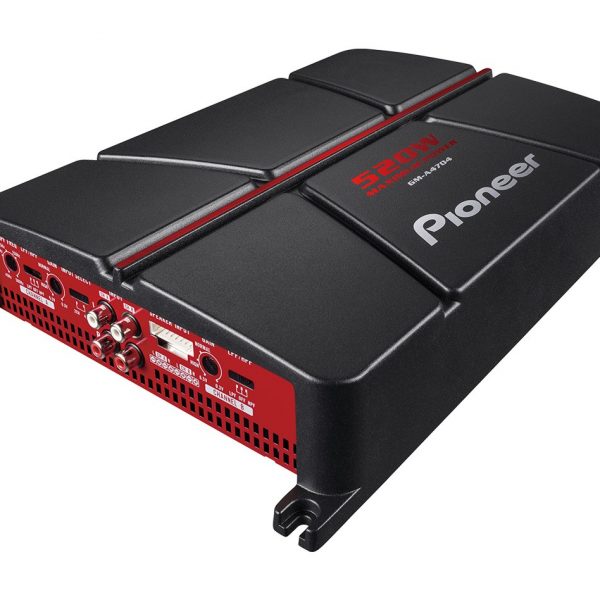

PIONEER GM-A4704

Chassis size (W x H x D) 326(W) x 60(H) x 215(D)
Unit weight 2.0
Speaker Terminals Screw-type
Speaker Input Level 3 – 26 V
Max. current consumption 20.5A
4-channel
Maximum power input 520W (Bridged) or 2 x 80W (4 Ω) or 4 x 130 W (2 Ω)
CEA 2006 Power 2 x 130W (4 Ω)
Continuous power output 4 x 40W (4 Ω) or 2 x 130W (4Ω bridged) or 4 x 65 W (2 Ω)
Load impedance capability 2-8 ohm allowable (stereo)
Frequency response 10Hz ~ 70kHz (+0dB , -3dB) Hz
Distortion < 0.05 % S/N ratio > 94 dB
LPF 80 Hz (-12 dB/oct)
Connections
High Voltage Input 300 mV – 6.5 V
