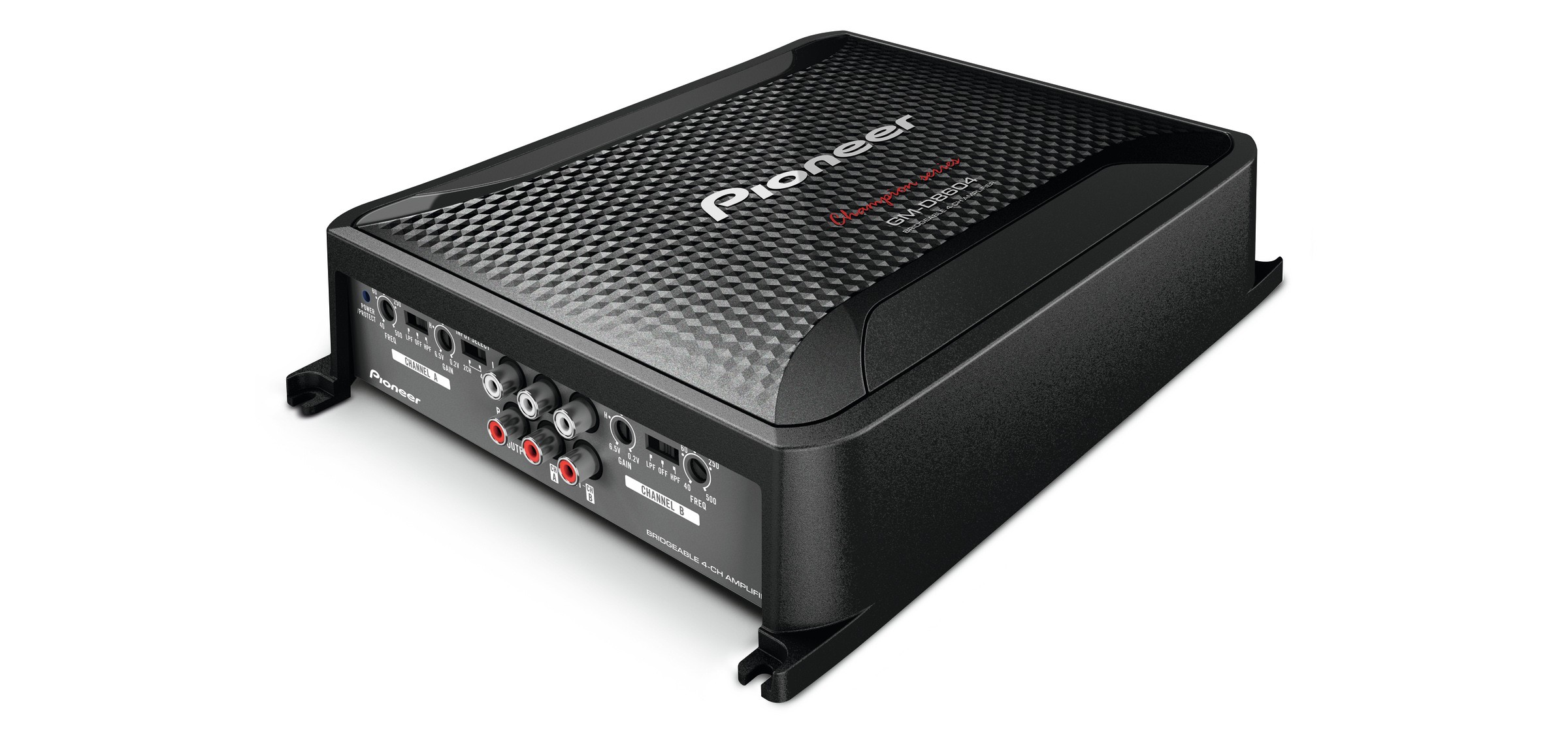

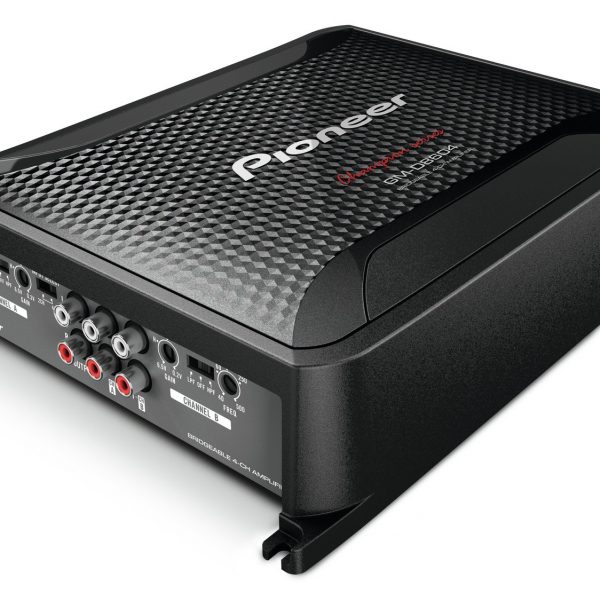

Pioneer GM-D8604 – 4 Channel 1200W Class-D Car Amp

Frequency response 10 – 50000 Hz
Distortion < 0.05 % S/N ratio > 95 dB
LPF 40 – 500 Hz (-12 dB/oct)
HPF 40 – 500 Hz (-12 dB/oct)
RCA terminals
Speaker Terminals Block-type
Speaker line input sensor Turn-on sensor
Input level control RCA (0.2V – 6.5V), SP (0.8V – 16V)
Max. current consumption (A/4Ω) 33.5 A
Chassis size (W x H x D) 265 x 60 x 200 mm
Unit weight 2,6 kg
